HOME > 신제품정보 > XH-45 / XH-60

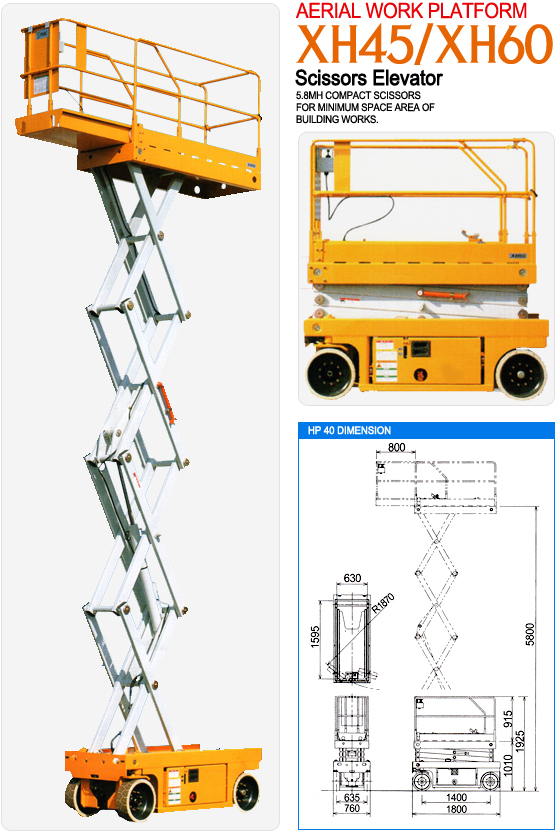

MODEL

XH 45 / XH 60

NAME

SELF-PROPELLED
SCISSORS LIFT

LIFT CAPACITY

200 Kg

EXTENSIION DECK

100 Kg

PLATFORM HEIGHT

5.8 m

PLATFORM SIZE

1595 X 630 mm

EXTENSION DECK

800 mm

WEIGHT

1360 Kg

LIFT POWER

HYDRAULIC

LIFT SPEED

UP		30 Sec.

DOWN		35 Sec.

DRIVE HYDRAULIC DUAL

FRONT WHEEL

DRIVE SPEED

FAST		1.8 Km/h

SLOW		0.8 Km/h

GRADIENT

11 ˚

POWER

DC MOTOR

CHARGER POWER

100V / 220V

CHARGER CAPACITY

15A

BATTERY

6V · 225A X 4
